简介
- Kasm Workspaces 提供对按需容器化桌面和应用程序的基于浏览器的访问
- 官方文档https://www.kasmweb.com/docs/latest/index.html

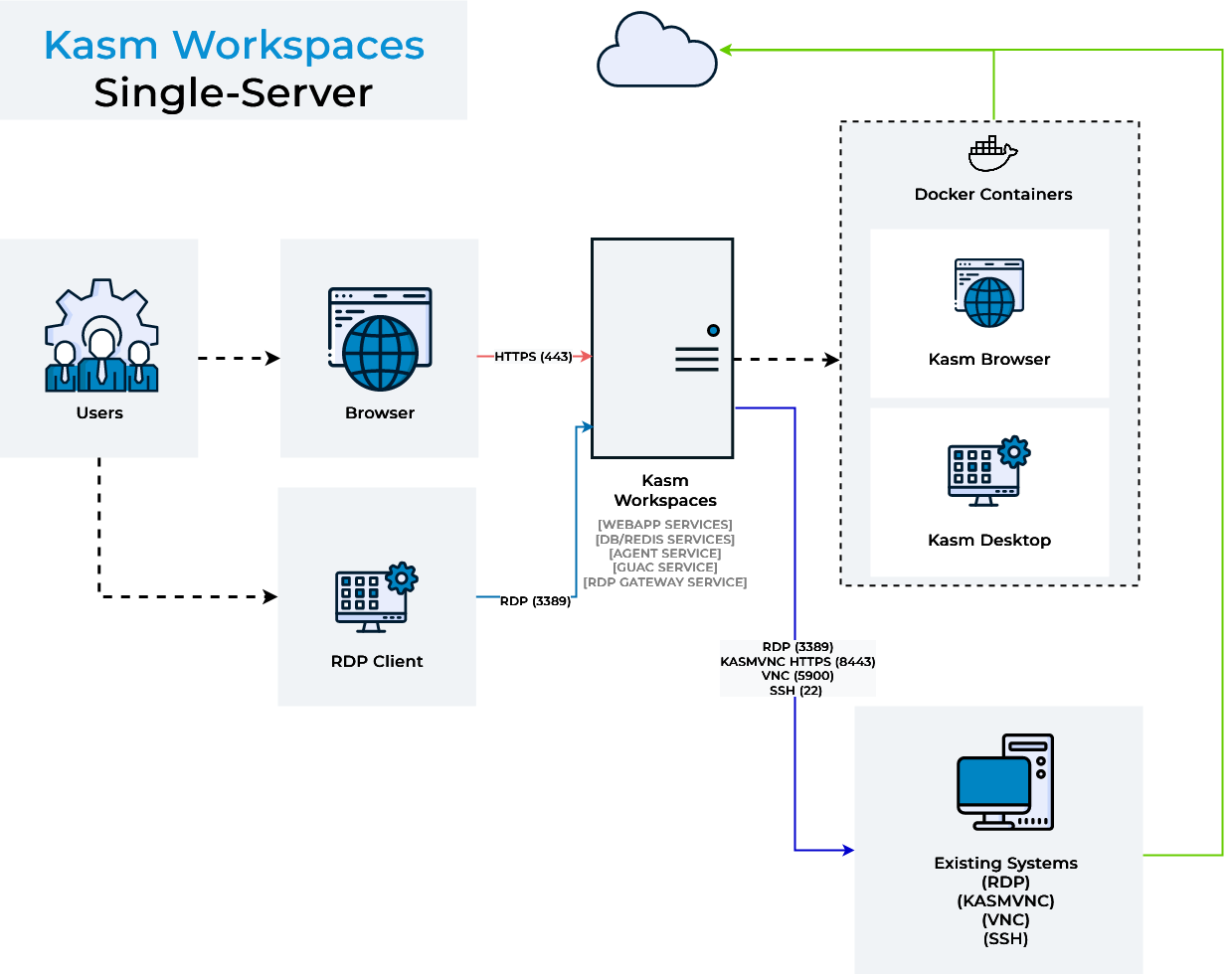

- 架构图

7.1 标准安装

操作如下

下载安装包

cd /tmp
curl -O https://kasm-static-content.s3.amazonaws.com/kasm_release_1.16.0.a1d5b7.tar.gz
tar -xf kasm_release_1.16.0.a1d5b7.tar.gz

调整install_dependencies.sh下载源

# 尽快你本机已经安装了docker-compose，但它还是会进行docker-compose的下载安装，下载地址是github国内容易超时
# kasm_release/install_dependencies.sh  添加加速地址 https://dl.hukanfa.cn 即可
100    curl -L https://dl.hukanfa.cn/https://github.com/docker/compose/releases/download/v2.5.0/docker-compose-$(uname -s)-$(uname -m) -o /usr/local/lib/    docker/cli-plugins/docker-compose

执行安装脚本

# 这个过程会检查环境、拉取镜像、最后创建容器。默认访问端口映射为本地443端口，可使用 -L 参数指定映射端口
/bin/bash  kasm_release/install.sh -L 8080

完成安装后，将给出相关服务自动创建的账号密码等信息，如下所示

Kasm UI Login Credentials
------------------------------------
username: admin@kasm.local
password: XloplcDRoE9UJ
------------------------------------
username: user@kasm.local
password: m7WakJRdKTdjT
------------------------------------
Kasm Database Credentials
------------------------------------
username: kasmapp
password: s48tVQSYM9LqbjKMQq8H
------------------------------------
Kasm Redis Credentials
------------------------------------
password: pbDTYUwrhDcCLPujdsGl
------------------------------------
Kasm Manager Token
------------------------------------
password: tr0J4MlX6YWVNxzFU1fK
------------------------------------
Service Registration Token
------------------------------------
password: U9hnNf0mubNJp4afWqpM
------------------------------------

7.2 访问配置

7.2.1 基本访问

操作如下

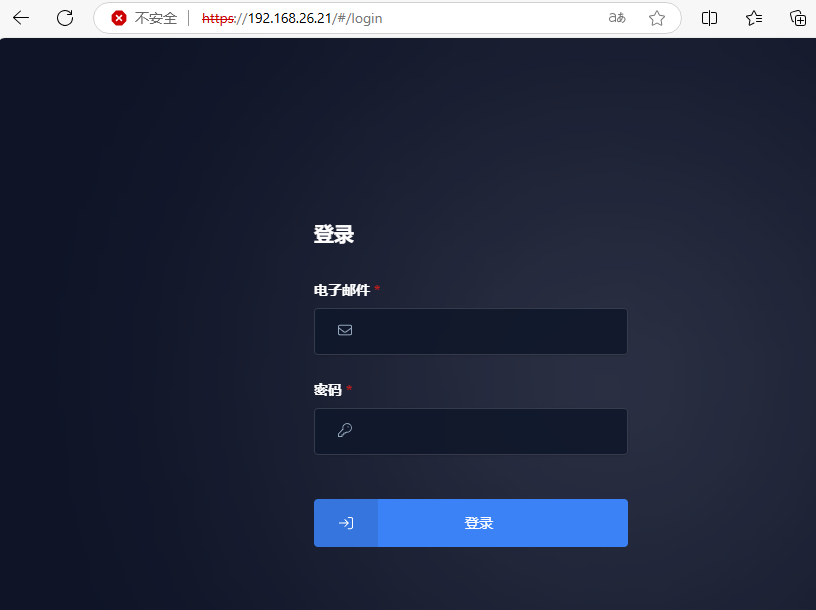

- 直接访问 https://192.168.26.21

7.2.2 反向代理

说明
- 官方文档 https://kasmweb.com/docs/latest/how_to/reverse_proxy.html

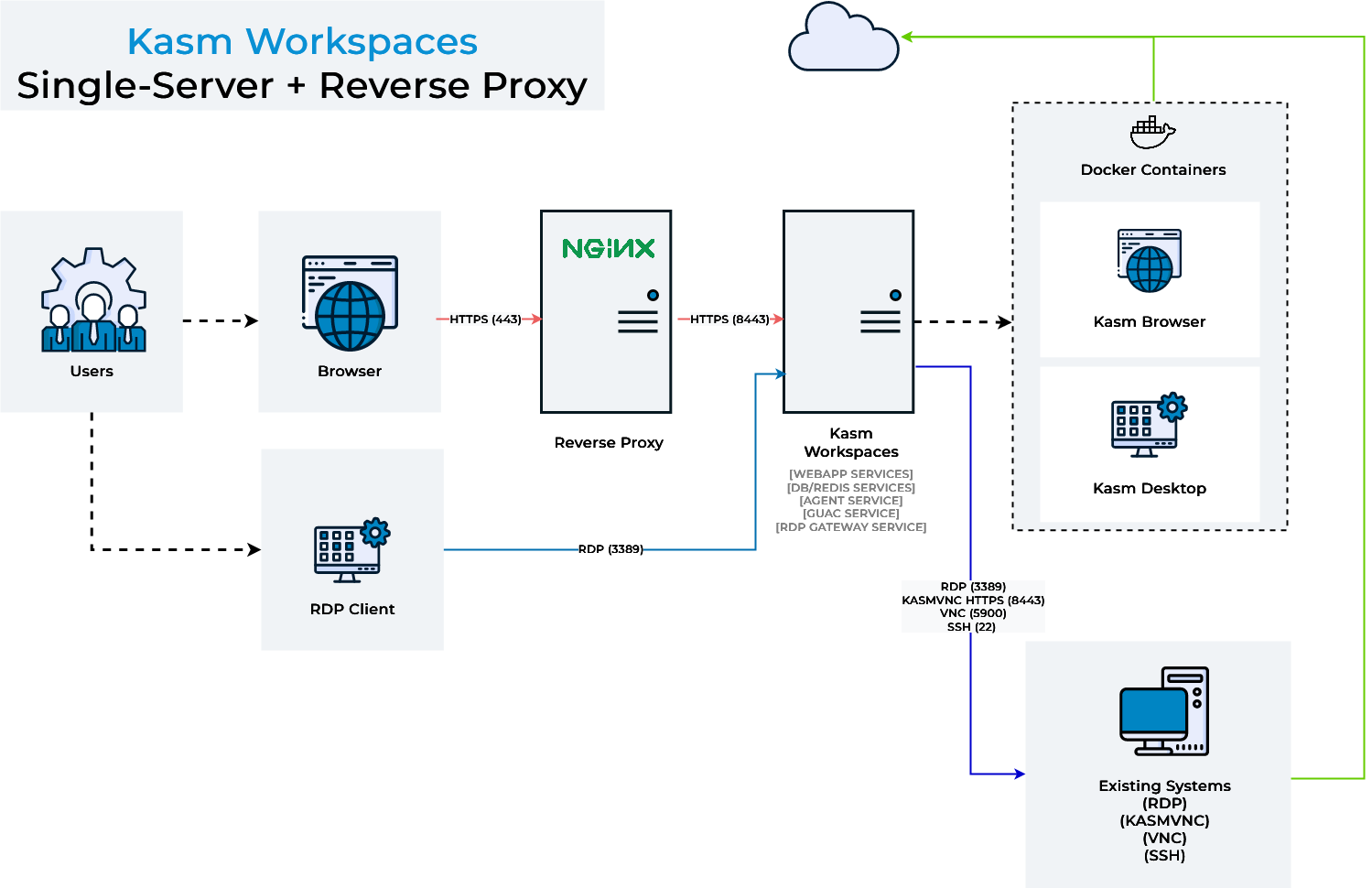

- 架构图

操作如下

kasm.xxx.com.conf

server {
  listen 80;
  server_name kasm.xxx.com;
  rewrite ^(.*)$ https://$host$1 permanent;
}

server {
  listen 443 ssl;
  server_name  kasm.xxx.com;
  ssl_certificate certs/xxx.com.crt;
  ssl_certificate_key certs/xxx.com.key;
  access_log  logs/kasm_access.log  qlmain;
  error_log logs/kasm_error.log error;

  location / {
     # The following configurations must be configured when proxying to Kasm Workspaces

     # WebSocket Support
     proxy_set_header        Upgrade $http_upgrade;
     proxy_set_header        Connection "upgrade";

     # Host and X headers
     proxy_set_header        Host $host;
     proxy_set_header        X-Real-IP $remote_addr;
     proxy_set_header        X-Forwarded-For $proxy_add_x_forwarded_for;
     proxy_set_header        X-Forwarded-Proto $scheme;

     # Connectivity Options
     proxy_http_version      1.1;
     proxy_read_timeout      1800s;
     proxy_send_timeout      1800s;
     proxy_connect_timeout   1800s;
     proxy_buffering         off;

     # Allow large requests to support file uploads to sessions
     client_max_body_size 10M;

     # Proxy to Kasm Workspaces running locally on 8443 using ssl
     proxy_pass https://127.0.0.1:8088;
  }
}

调整默认域配置，路径 管理 -> 基础设施 -> 区域 ，将代理端口设置为 0

至此，就可以使用域名进行访问了

7.3 配置实践

7.3.1 发布应用

操作如下
- 路径 管理 -> 工作区 -> 注册表
- 注册表页签显示的内容表示应用可以从 Kasm 官方安装，也可以从第三方如 Linuxserver.io 或者 Twingate
- 可用工作区页签将显示注册表渠道发布可安装的应用列表，选定应用点击就安装即可
- 正在安装中的应用将在 已安装工作区 中显示，应用安装完成后就可以再工作区中直接使用，用完即可删除

7.3.2 调整会话保留时长

操作如下
- 默认工作区创建的应用容器会话销毁时长为 1 小时，某些场景下如果想延长会话销毁，可以延长会话保留时间
- 路径 管理 -> 设置 -> 全局 -> 身份验证 -> 会话时间限制

7.3.3 权限配置

操作如下

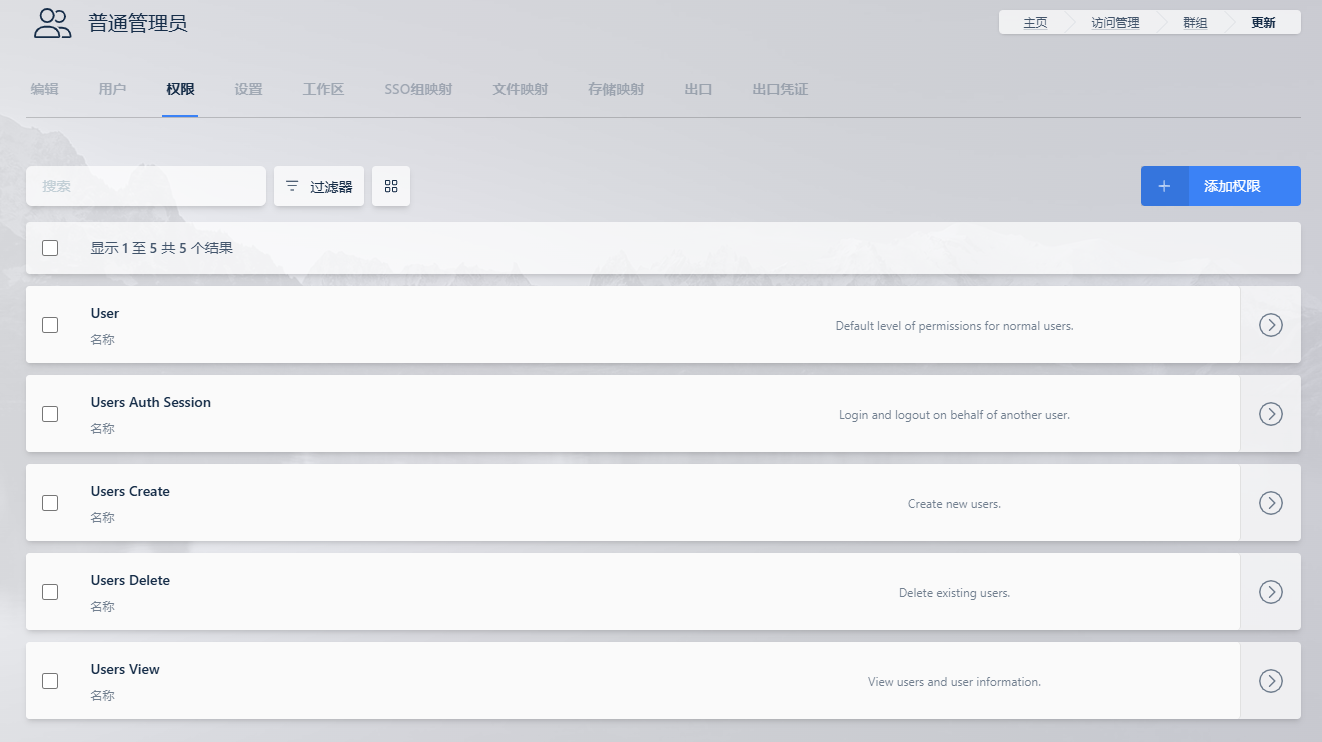

- 配置普通管理员权限

7.3.4 调整端口

操作如下

界面访问的默认端口为443，初次部署没有指定其他端口或后续需要更换端口可以参考以下操作
停止并删除容器

# 停止容器
sudo /opt/kasm/current/bin/stop
# 删除容器
export KASM_UID=$(id kasm -u)
export KASM_GID=$(id kasm -g)
sudo -E docker compose -f /opt/kasm/current/docker/docker-compose.yaml rm

修改以下配置文件端口

# 路径： /opt/kasm/current 统一将下面8089端口替换即可
./conf/nginx/orchestrator.conf:3:    listen 8089 ssl;
./conf/app/agent.app.config.yaml:20:  public_port: 8089
./conf/app/agent.app.config.yaml:82:  public_port: 8089
./conf/app/kasmguac.app.config.yaml:6:  server_port: 8089
./conf/app/kasmguac.app.config.yaml:31:  port: 8089
./conf/app/passthrough.app.config.yaml:7:  port: 8089
./conf/app/passthrough.app.config.yaml:81:  server_port: 8089
./conf/app/rdp_https_gateway.app.config.yaml:16:    port: 8089
./conf/app/rdp_https_gateway.app.config.yaml:22:    server_port: 8089
./docker/.conf/docker-compose-agent.yaml:24:      - "8089:8089"
./docker/.conf/docker-compose-all.yaml:185:      - "8089:8089"
./docker/.conf/docker-compose-api.yaml:23:      - "8089:8089"
./docker/.conf/docker-compose-app.yaml:38:      - "8089:8089"
./docker/.conf/docker-compose-guac.yaml:66:      - "8089:8089"
./docker/.conf/docker-compose-proxy.yaml:7:      - "8089:8089"
./docker/docker-compose.yaml:185:      - "8089:8089"

创建并启动容器

# 启动容器
sudo /opt/kasm/current/bin/stop
# 查看状态
docker ps

访问 https://192.168.26.21:8089

7.4 卸载

操作如下

官方文档 https://kasmweb.com/docs/latest/install/uninstall.html
停止服务

# 同样的，启动服务  /opt/kasm/current/bin/start
sudo /opt/kasm/current/bin/stop

删除kasm相关会话容器

# If there are no session containers to remove, you will get an error that “docker rm requires at least 1 argument”, which means that the command ran successfully
sudo docker rm -f $(sudo docker container ls -qa --filter="label=kasm.kasmid")

删除容器

export KASM_UID=$(id kasm -u)
export KASM_GID=$(id kasm -g)
sudo -E docker compose -f /opt/kasm/current/docker/docker-compose.yaml rm

删除网络

sudo docker network rm kasm_default_network

删除网络插件

plugin_name=$(sudo docker network inspect kasm_sidecar_network --format '{{.Driver}}')
sudo docker network rm kasm_sidecar_network
sudo docker plugin disable $plugin_name
sudo docker plugin rm $plugin_name
sudo rm -rf /var/log/kasm-sidecar
sudo rm -rf /var/run/kasm-sidecar

删除挂载卷

sudo docker volume rm kasm_db_1.16.0

删除相关镜像

sudo docker rmi redis:5-alpine
sudo docker rmi postgres:14-alpine
sudo docker rmi kasmweb/nginx:latest
sudo docker rmi kasmweb/share:1.16.0
sudo docker rmi kasmweb/agent:1.16.0
sudo docker rmi kasmweb/manager:1.16.0
sudo docker rmi kasmweb/api:1.16.0

sudo docker rmi $(sudo docker images --filter "label=com.kasmweb.image=true" -q)

sudo rm -rf /opt/kasm/

删除用户

sudo deluser kasm_db
sudo deluser kasm
